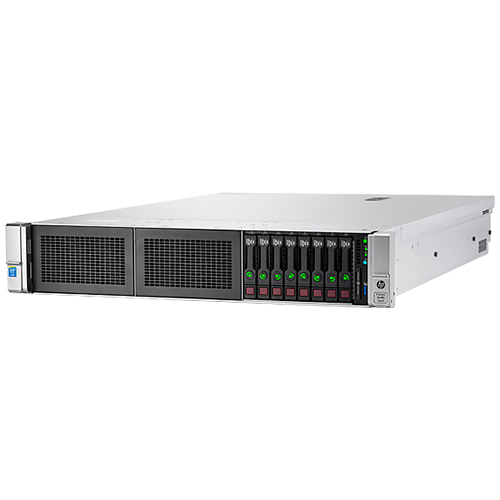

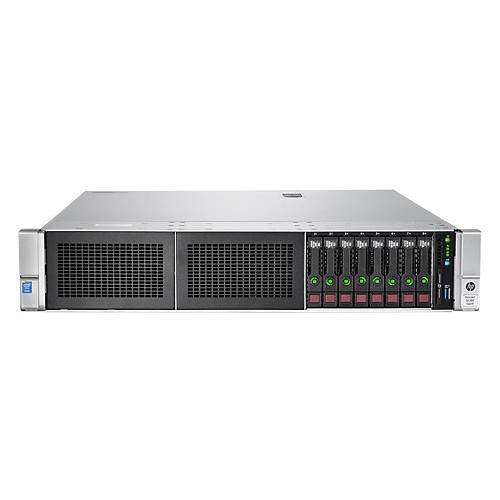

HPE ProLiant DL380 Gen9 E5-2650V3 2.3 GHz - 32 GB (752689-B21)
| HPE ProLiant DL380 Gen9 Performance - rack-mountable - Xeon E5-2650V3 2.3 GHz - 32 GB - 0 GB | |
|---|---|
| Type | Server - rack-mountable |
| Height (Rack Units) | 2U |
| Localisation | Worldwide (excluding China, Japan) |
| Server Scalability | 2-way |
| Processor | 2 x Intel Xeon E5-2650V3 / 2.3 GHz (3 GHz) (10-core) |
| Cache Memory | 50 MB L3 Cache |
| Cache Per Processor | 25 MB |
| RAM | 32 GB (installed) / 384 GB (max) - DDR4 SDRAM - Advanced ECC |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (Smart Array P440ar with 2GB FBWC) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | DVD-RW |
| Graphics Controller | Matrox G200eH2 |
| Video Memory | 16 MB |
| Networking | GigE, 10 GigE |
| Power | AC 120/230 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 44.55 cm x 67.94 cm x 8.73 cm |
| Weight | 14.759 kg |
| Manufacturer Warranty | 3 years warranty - on-site |
Extended Specification
| General | |
|---|---|
| Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
| Hot-Swap Bays Qty | 8 |
| Localisation | Worldwide (excluding China, Japan) |
| Product Form Factor | Rack-mountable - 2U |
| Recommended Use | Small business, corporate business |
| Server Scalability | 2-way |
| Type | Server |
| Cache Memory | |
|---|---|
| Cache Per Processor | 25 MB |
| Installed Size | L3 Cache - 50 MB |
| Dimensions & Weight | |
|---|---|
| Depth | 67.94 cm |
| Height | 8.73 cm |
| Weight | 14.759 kg |
| Width | 44.55 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Sound Emission | 25 dBA |
| Expansion / Connectivity | |
|---|---|
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Interfaces | 4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x HP iLO - RJ-45 ¦ 2 x VGA (1 front, 1 rear) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 2 x LAN (10Gigabit Ethernet) ¦ 2 x USB 2.0 (2 in front) |
| Slots | 2 (total) / 0 (free) x CPU ¦ 24 (total) / 22 (free) x DIMM 288-pin ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 - half-length, full-height (x8 mode) ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal) ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 - full-length, full-height |
| Graphics Controller | |
|---|---|
| Graphics Processor | Matrox G200eH2 |
| Type | Integrated |
| Video Interfaces | VGA |
| Video Memory | 16 MB |
| Hard Drive | |
|---|---|
| Type | No HDD |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
| Miscellaneous | |
|---|---|
| Compliant Standards | ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438 |
| Features | Administrator password, power-on password, serial port I/O control, UEFI BIOS |
| Included Accessories | Cable management arm, HP Easy Install Rails |
| Monitor | |
|---|---|
| Monitor Type | None. |
| Networking | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet Controller | HP 331i |
| Ethernet Ports | 2 x 10 Gigabit Ethernet, 4 x Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support |
| Remote Management Controller | Integrated Lights-Out 4 |
| Type | Integrated |
| Operating System / Software | |
|---|---|
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris, Citrix XenServer, Canonical Ubuntu |
| Optical Storage | |
|---|---|
| Type | DVD-RW |
| Power | |
|---|---|
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply - hot-plug |
| Efficiency | 94% |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V |
| Power Provided | 800 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Processor / Chipset | |
|---|---|
| CPU | Intel Xeon E5-2650V3 / 2.3 GHz |
| CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 2 |
| Max Turbo Speed | 3 GHz |
| Number of Cores | 10-core |
| RAM | |
|---|---|
| Configuration Features | 2 x 16 GB |
| Effective Memory Speed | 2133 MHz |
| Features | Registered, HP SmartMemory |
| Form Factor | DIMM 288-pin |
| Installed Size | 32 GB / 384 GB (max) |
| RAM Supported | PC4-17000 - 384 GB registered ¦ PC4-17000 - 1.5 TB Load-Reduced |
| Technology | DDR4 SDRAM - Advanced ECC |
| Storage Controller | |
|---|---|
| Buffer Size | 2 GB |
| Channel Qty | 8 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| Storage Controller Name | Smart Array P440ar with 2GB FBWC |
| Type | 1 x RAID - PCIe 3.0 x8 |
