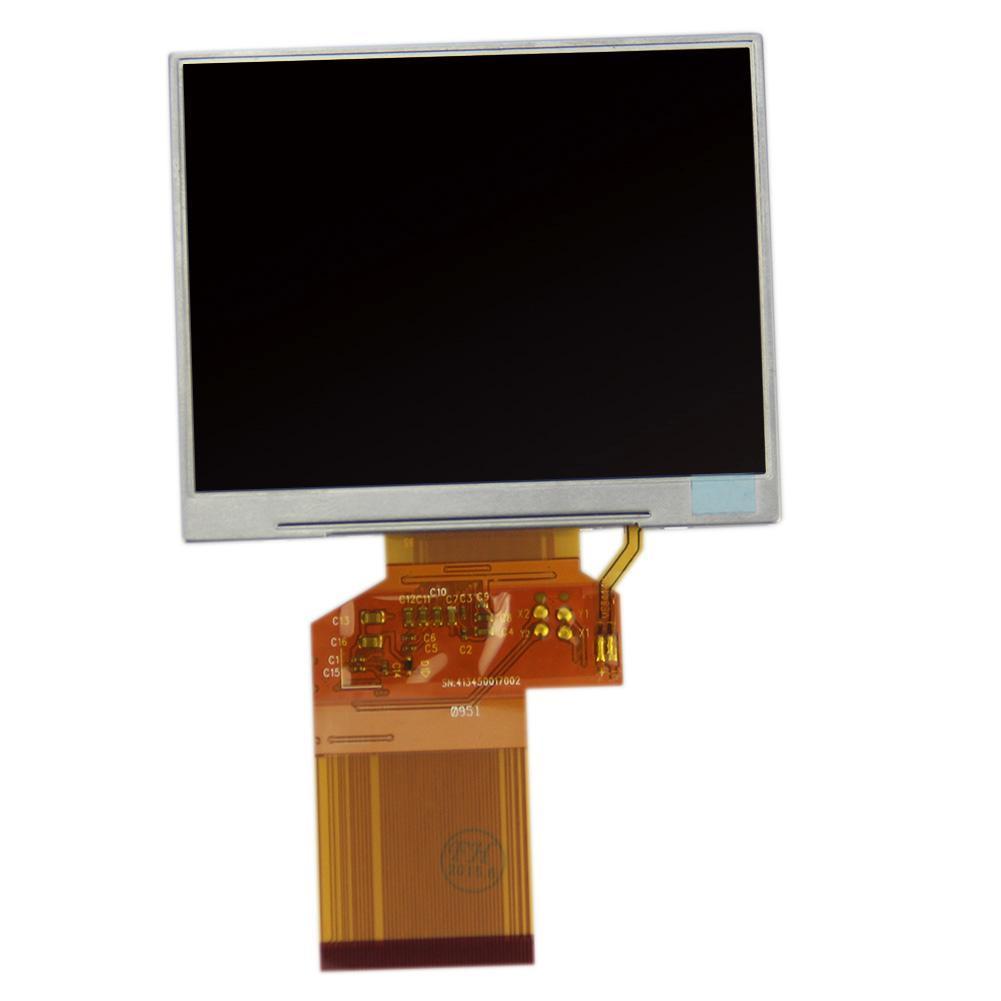

LQ035NC111 54pin 3.5" Inch QVGA 240x320 TFT Color LCD Display Modul

875,00 TL
(1.050,00 TL Kdv dahil)
LQ035NC111
Stokta yok

LQ035NC111 54pin 3.5" Inch QVGA 240x320 TFT Color LCD Display Modul

Teknik Özellikleri

Outline Dimension: 105.50(H) x 67.20(V) x 3.15(D) mm
Active Area: 95.04(H) x 53.856(V) mm
Resolution: 320 RGB (H) x 240(V) pixels
Pixel Pitch: 0.198(H) x 0.198(V) mm
Display Mode: 262K colors, Transmissive
IC Driver: HX8257A
Viewing Angel: 6 o'clock
Logic Voltage: +3.0~3.6V
Surface treatment Antiglare, Hard-Coating (3H)
Back-light LED Side-light type(10pcs white LEDs)
Operation Temperature: -20 ℃~ +70℃
Storage Temperature: -30 ℃~ +80℃
Weight: 59grams
